shale shaker

Category： Solids Control Equipment
INQUIRY EMAIL

Description:

Shale shaker is the first stage of drilling fluids solids control system. it is also the most important equipment of mud recycling system. It can remove the cuttings in the mud that is bigger than 75μm. The performance of shale shaker determines the working efficiency of the whole drilling mud solids control system.

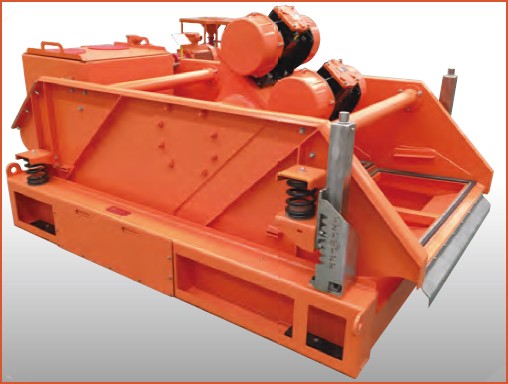

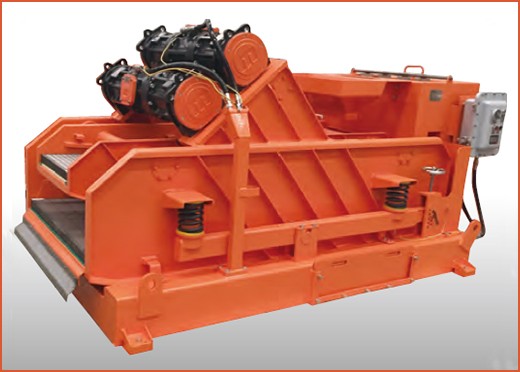

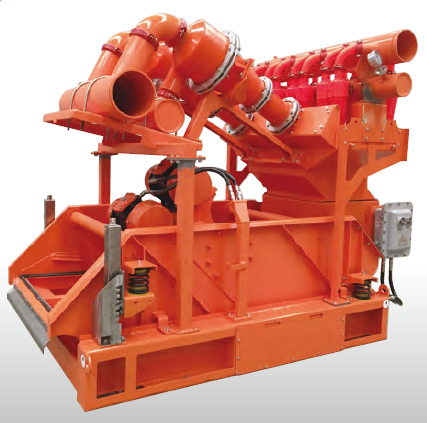

BOBAN can make & provide linear motion shale shaker & elliptical motion ones. Beside this, BOBAN can also supply tandem shakers and triplicate shakers on single skid according to customers’ requirements, Combination of shale shaker & mud cleaning manifold is also available.

Features & Benefits:

Ajustable High G force
Heat treatment on complete shale shaker deck.
Vibrating Motor: IEC Ex, ATEX and UL Certified
Electrical components: SIEMENS, Schneider Brand
Wedge type design for easy and quick screen replacement
Electric Shaker Deck angle adjustable while drilling

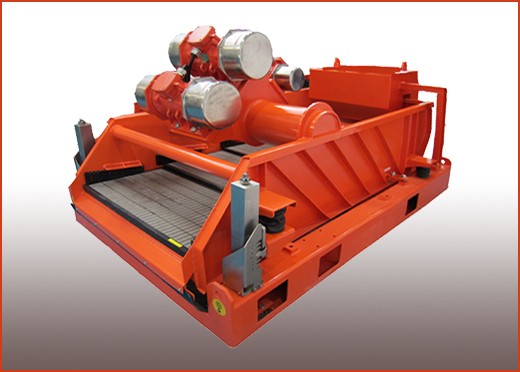

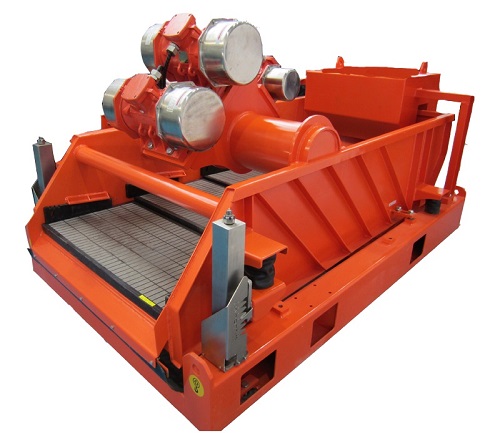

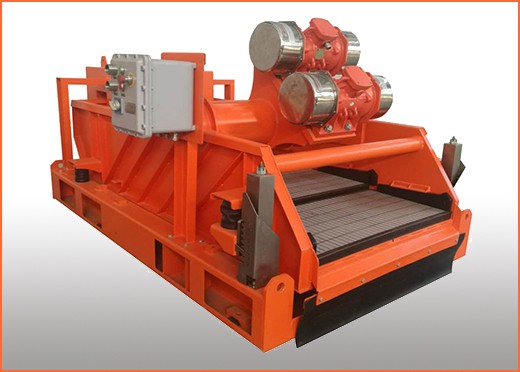

As the optimized design and stable performance, linear motion shale shaker now is the most popular model applied by the drilling contractors. Matching with GN own designed and manufactured shaker screen of different mesh number, GN linear motion shale shaker suites for customer’s various applications. Easy method to replace the screens greatly shortens the downtime. Shale shaker deck angle adjustable while running enable to achieve the proper solids conveyance and fluid end point. High G force and large screen area make sure the stable performance when treating the large flow drilling mud.

Linear motion shale shaker are widely used for drilling mud solids control of oil & gas well drilling. In a complete mud recycling system, shale shaker is the first stage equipment for both solids control and mud cleaning. Shale shaker for solids control are devices that remove drill cuttings from the drilling fluid while circulating and drilling. By using different wire mesh screen, linear motion shaker could maximally remove the drilling cuttings and recover the valuable drilling mud back into the mud system for subsequent treatment. Besides Solids Control, linear motion shale shaker with High G force and large shaker screen area could be used as dryer shaker in drilling waste management project. After treated by Hi G dryer shaker, more drilling mud will be recovered and less volume solid waste discharged. The designs of drilling mud buffer box on GN shale shaker have back type and top type for option, which makes it separately suitable petroleum drilling and HDD.
